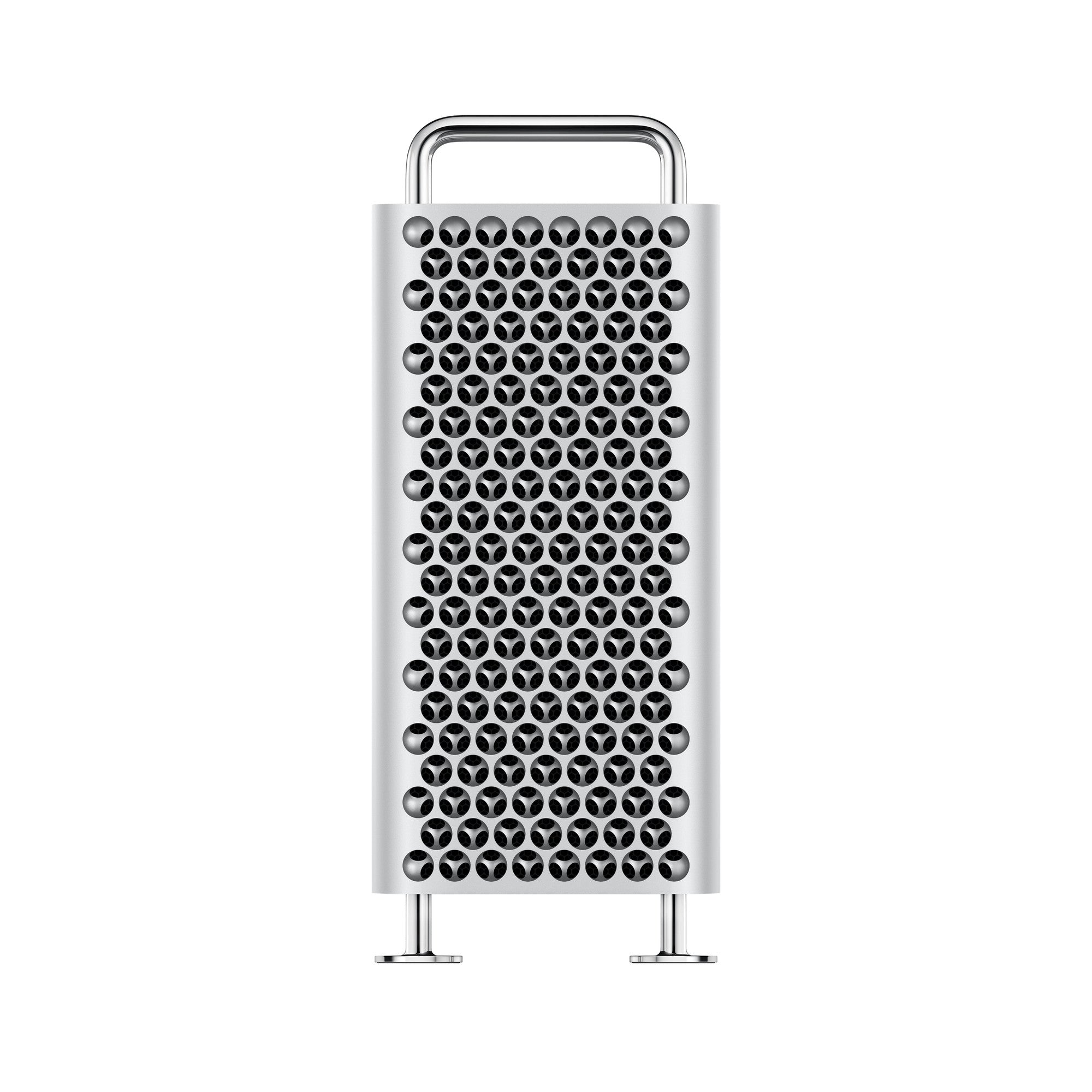

Mac Pro 2.7Ghz 24-Core Intel Xeon W3265M 32GB RAM 256GB SSD 2019 BTO/CTO Grade (C)

Processor

Configure from an 8‑core to 28‑core Intel Xeon W processor

• 8-Core

  • 3.5GHz Intel Xeon W

  • 8 cores, 16 threads

  • Turbo Boost up to 4.0GHz

  • 24.5MB cache

  • Supports 2666MHz memory

• 12-Core

  • 3.3GHz Intel Xeon W

  • 12 cores, 24 threads

  • Turbo Boost up to 4.4GHz

  • 31.25MB cache

  • Supports 2933MHz memory

• 16-Core

  • 3.2GHz Intel Xeon W

  • 16 cores, 32 threads

  • Turbo Boost up to 4.4GHz

  • 38MB cache

  • Supports 2933MHz memory

• 24-Core

  • 2.7GHz Intel Xeon W

  • 24 cores, 48 threads

  • Turbo Boost up to 4.4GHz

  • 57MB cache

  • Supports 2933MHz memory

• 28-Core

  • 2.5GHz Intel Xeon W

  • 28 cores, 56 threads

  • Turbo Boost up to 4.4GHz

  • 66.5MB cache

  • Supports 2933MHz memory

Memory

Configure up to 1.5TB of DDR4 ECC memory in 12 user-accessible DIMM slots

• 32GB

  • Four 8GB DIMMs

• 48GB

  • Six 8GB DIMMs

• 96GB

  • Six 16GB DIMMs

• 192GB

  • Six 32GB DIMMs

• 384GB

  • Six 64GB DIMMs

• 768GB

  • Six 128GB DIMMs or 12 64GB DIMMs

• 1.5TB

  • 12 128GB DIMMs

  • Requires 24-core or 28-core processor.

8-core processor operates memory at 2666MHz.

12-core to 28-core processors operate memory at 2933MHz.

Graphics

Configure two MPX Modules with up to four GPUs

• AMD Radeon Pro 580X

  • 36 compute units, 2304 stream processors

  • 8GB of GDDR5 memory

  • Up to 5.6 teraflops single precision

  • Two HDMI 2.0 ports on card

  • Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports

  • Support for up to six 4K displays, two 5K displays, or two Pro Display XDRs

  • Half-height MPX Module fits in an MPX bay and enables PCIe slot 2 for additional expansion

• AMD Radeon Pro W5500X

  • 24 compute units, 1536 stream processors

  • 8GB of GDDR6 memory with 224GB/s memory bandwidth

  • Up to 5.6 teraflops single precision or 11.2 teraflops half precision

  • Two HDMI ports on card with support for 4K60

  • Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports

  • Support for up to four 4K displays, one 5K display, or one Pro Display XDR

  • Half-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

• AMD Radeon Pro W5700X

  • 40 compute units, 2560 stream processors

  • 16GB of GDDR6 memory with 448GB/s memory bandwidth

  • Up to 9.4 teraflops single precision or 18.9 teraflops half precision

  • Four Thunderbolt 3 ports and one HDMI port on card with support for 4K60

  • Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports

  • Support for Display Stream Compression (DSC)

  • Support for up to six 4K displays, three 5K displays, or three Pro Display XDRs

  • Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

• AMD Radeon Pro Vega II

  • 64 compute units, 4096 stream processors

  • 32GB of HBM2 memory with 1TB/s memory bandwidth

  • Up to 14.1 teraflops single precision or 28.3 teraflops half precision

  • Infinity Fabric Link connection enables two Vega II GPUs to connect at up to 84GB/s

  • Four Thunderbolt 3 ports and one HDMI 2.0 port on card

  • Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports

  • Support for up to six 4K displays, three 5K displays, or two Pro Display XDRs

  • Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

• AMD Radeon Pro Vega II Duo

  • Two Vega II GPUs, each with 64 compute units and 4096 stream processors

  • 64GB of HBM2 memory (32GB per GPU), each with 1TB/s memory bandwidth

  • Up to 28.3 teraflops single precision or 56.6 teraflops half precision

  • Onboard Infinity Fabric Link connection connects the two Vega II GPUs at up to 84GB/s

  • Four Thunderbolt 3 ports and one HDMI 2.0 port on card

  • Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports

  • Support for up to eight 4K displays, four 5K displays, or four Pro Display XDRs

  • Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

• AMD Radeon Pro W6800X

  • 60 compute units, 3840 stream processors

  • 32GB of GDDR6 memory with 512GB/s memory bandwidth

  • Up to 16.0 teraflops single precision or 32.0 teraflops half precision

  • Infinity Fabric Link connection enables two W6800X GPUs to connect at up to 84GB/s in each direction

  • Four Thunderbolt 3 ports and one HDMI port on card with support for 4K60

  • Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports

  • Support for up to six 4K displays, three 5K displays, or three Pro Display XDRs

  • Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

• AMD Radeon Pro W6900X

  • 80 compute units, 5120 stream processors

  • 32GB of GDDR6 memory with 512GB/s memory bandwidth

  • Up to 22.2 teraflops single precision or 44.4 teraflops half precision

  • Infinity Fabric Link connection enables two W6900X GPUs to connect at up to 84GB/s in each direction

  • Four Thunderbolt 3 ports and one HDMI port on card with support for 4K60

  • Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports

  • Support for up to six 4K displays, three 5K displays, or three Pro Display XDRs

  • Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

• AMD Radeon Pro W6800X Duo

  • Two W6800X GPUs, each with 60 compute units and 3840 stream processors

  • 64GB of GDDR6 memory (32GB per GPU), each with 512GB/s memory bandwidth

  • Up to 30.2 teraflops single precision or 60.4 teraflops half precision

  • Onboard Infinity Fabric Link connection connects two W6800X GPUs at up to 84GB/s in each direction; external Infinity Fabric Link connection enables two W6800X Duo modules to connect four W6800X GPUs

  • Four Thunderbolt 3 ports and one HDMI port on card with support for 4K60

  • Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports

  • Support for up to eight 4K displays, four 5K displays, or six Pro Display XDRs

  • Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

• AMD Radeon Pro W6600X

  • 32 compute units, 2048 stream processors

  • 8GB of GDDR6 memory with 256GB/s memory bandwidth

  • Up to 9.8 teraflops single precision or 19.6 teraflops half precision

  • Two HDMI ports on card with support for 4K60

  • Up to four DisplayPort connections routed to system to support internal Thunderbolt 3 ports

  • Support for up to four 4K displays, one 5K display, or two Pro Display XDRs

  • Half-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth

Power Supply

1.4 kilowatts

• Maximum continuous power:

  • 1280W at 108–125V or 220–240V

  • 1180W at 100–107V

Expansion Slots

Eight PCI Express expansion slots

• Two MPX Modules or up to four PCI Express card slots

  • Each MPX bay provides:

    • x16 gen 3 bandwidth for graphics

    • x8 gen 3 bandwidth for Thunderbolt

    • DisplayPort video routing

    • Up to 500W power for an MPX Module

    Alternatively, each MPX bay can support:

    • One full-length, double-wide x16 gen 3 slot and one full-length, double-wide x8 gen 3 slot (MPX bay 1)

    • Or two full-length, double-wide x16 gen 3 slots (MPX bay 2)

    • Up to 300W auxiliary power via two 8-pin connectors

• Three full-length PCI Express gen 3 slots

  • One x16 slot; two x8 slots

  • 75W auxiliary power available

• One half-length x4 PCI Express gen 3 slot with Apple I/O card installed

Apple Afterburner

ProRes and ProRes RAW accelerator card

• PCI Express x16 card

• Accelerates ProRes and ProRes RAW codecs in Final Cut Pro, QuickTime Player X, and supported third-party apps

• Supports system playback of up to 6 streams of 8K ProRes RAW or up to 23 streams of 4K ProRes RAW¹

Storage

Configure up to 8TB of SSD storage²

• 256GB SSD

  • One 256GB module

• 512GB SSD

  • One 512GB module

• 1TB SSD

  • Two 512GB modules

• 2TB SSD

  • Two 1TB modules

• 4TB SSD

  • Two 2TB modules

• 8TB SSD

  • Two 4TB modules

Up to 3.4GB/s sequential read and 3.4GB/s sequential write performance.

Storage encrypted by the Apple T2 Security Chip.

Input/Output

I/O card installed in the half-length x4 PCI Express slot with:

• Two USB 3 ports

  • Support for USB-A (up to 5Gb/s)

• Two Thunderbolt 3 ports

  • Support for Thunderbolt 3 (up to 40Gb/s)

  • Support for USB-C (up to 10Gb/s)

  • Support for DisplayPort

• Two 10Gb Ethernet ports:

  • Support for 10Gb Ethernet performance over copper cabling

  • Support for Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors

Additional Connections

Two Thunderbolt 3 ports on the top of the tower enclosure

• Support for Thunderbolt 3 (up to 40Gb/s)

• Support for USB-C (up to 10Gb/s)

• Support for DisplayPort

Audio

• Built-in speaker

• 3.5 mm headphone jack with headset support

Input Devices

• Magic Keyboard with Numeric Keypad (silver and black)

• Magic Mouse (silver and black)

• Optional Magic Trackpad (silver and black)

Wireless

• Wi-Fi

  • 802.11ac Wi-Fi wireless networking

  • IEEE 802.11a/b/g/n compatible

• Bluetooth

  • Bluetooth 5.0 wireless technology

Enclosure

• Mac Pro tower enclosure with feet; configurable to tower with wheels

Dimensions

• Height: 20.8 inches (52.9 cm)

• Width: 17.7 inches (45.0 cm)

• Depth: 8.58 inches (21.8 cm)

• Height with optional wheels: 21.9 inches (55.7 cm)

Weight³

• 39.7 pounds (18.0 kg)

Electrical and Operating Requirements

• Line voltage: 100–125V AC at 12A; 220–240V AC at 6A

• Frequency: 50Hz to 60Hz, single phase

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: –40° to 116° F (–40° to 47° C)

• Relative humidity: 5% to 95% noncondensing

• Maximum altitude: tested up to 16,400 feet (5000 meters)
